DRBD with PCS: Make production at HIGH availability!



DRBD Configuration with PCS (Pacemaker/Corosync)
----------------------------------------------------------

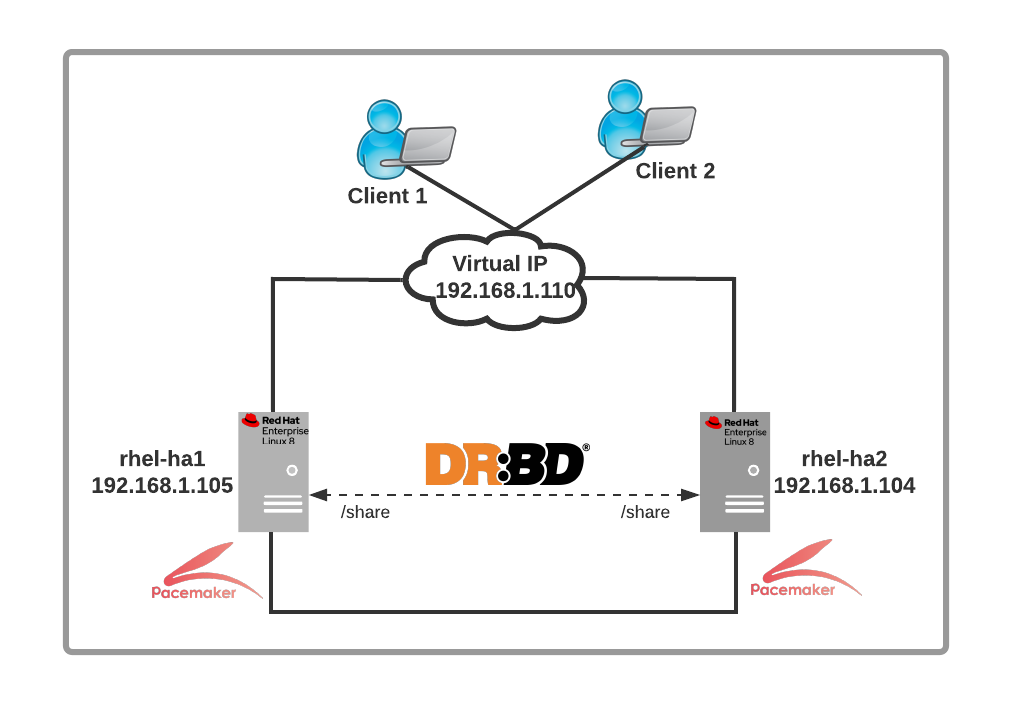

High Availability DRBD on RHEL 8. DRBD®– software is a distributed… | by Ach.Chusnul Chikam | Medium

1. Introduction

DRBD (Distributed Replicated Block Device) is a block-level replication tool that allows real-time data replication between two servers for high availability. When combined with PCS (Pacemaker/Corosync), it provides automatic failover in case of primary node failure.

2. Understanding DRBD with PCS

  • DRBD replicates data between two servers at the block level.

  • Both servers have an HDD connected via a dedicated cross cable to ensure fast and direct replication.

  • Only one server is Primary at a time, while the other remains Secondary.

  • The Primary node handles read/write operations, while the Secondary node keeps data in sync.

  • In case of failover, the Secondary node becomes Primary, ensuring high availability.

  • The IP address of the cross cable connection is mentioned in /etc/drbd.d/drbd0.res, allowing ping or telnet to verify connectivity.

3. Key Verification Commands



Command

Purpose

#pcs status :

Check if the Primary and Secondary hosts are online

#systemctl status drbd :

Check the status of the DRBD service

#drbd-overview :

Verify if data synchronization is up-to-date

#cat /etc/drbd.d/drbd0.res :

Check DRBD resource configuration details

#telnet <secondary_IP>  <DRBD_Port> :

 Verify if the cross cable is connected

#ping <secondary_IP> :

Check network connectivity between nodes

4. DRBD Configuration Steps

Step 1: Install Required Packages

#yum install -y drbd kmod-drbd pacemaker pcs
#systemctl enable pcsd
#systemctl start pcsd

Step 2: Authenticate PCS Cluster Nodes

#echo "password" | passwd --stdin hacluster
#pcs cluster auth <node1> <node2> -u hacluster -p password

Step 3: Configure DRBD Resource

Create DRBD Configuration File

#vi /etc/drbd.d/drbd0.res

Example:

resource drbd0 {
  device    /dev/drbd0;
  disk      /dev/sdb;
  meta-disk internal;
  on node1 {
    address 192.168.1.1:7789;
  }
  on node2 {
    address 192.168.1.2:7789;
  }
}

Initialize DRBD

#drbdadm create-md drbd0
#systemctl enable drbd
#systemctl start drbd
#drbdadm up drbd0

Step 4: Set Primary Node and Format DRBD Disk

#drbdadm primary --force drbd0
#mkfs.ext4 /dev/drbd0

Step 5: Configure DRBD in PCS Cluster

#pcs cluster setup drbd-cluster <node1> <node2>
#pcs cluster start --all
#pcs property set stonith-enabled=false
#pcs property set no-quorum-policy=ignore

Create DRBD Resource in PCS

#pcs resource create drbd0 ocf:linbit:drbd drbd_resource=drbd0 op monitor interval=30s
#pcs resource master drbd0-master drbd0 master-max=1 master-node-max=1 clone-max=2 clone-node-max=1 notify=true

Create Filesystem Resource

#pcs resource create drbd_fs Filesystem device=/dev/drbd0 directory=/mnt/data fstype=ext4
#pcs constraint colocation add drbd_fs with master drbd0-master INFINITY
#pcs constraint order promote drbd0-master then start drbd_fs

5. Troubleshooting & Best Practices

Common Issues & Fixes:



Issue

Cause

Fix

DRBD stuck in Secondary mode

Primary node not set

Run #drbdadm primary --force drbd0

Split-brain situation

 Network failure

Run #drbdadm disconnect drbd0; drbdadm secondary drbd0; drbdadm connect drbd0

Service not starting

 Config error

Check logs: #journalctl -xe -u drbd

DRBD sync issue

Network connectivity

Verify using #ping and #telnet commands

Failover not happening

PCS misconfiguration

Run #pcs resource cleanup drbd0 and #pcs status

Testing Failover Manually

#pcs resource move drbd_fs <other_node>

Verifying DRBD Synchronization

#drbd-overview
#drbdadm status

Related Config Files

/etc/drbd.conf – Config file
/etc/drbd.d/global_common.conf - contains the global and common sections of the DRBD configuration.
/etc/drbd.d/*.res – Each resource configuration file

Port Number : 7788
Service Name : drbd


6. Conclusion

This document provides a complete guide to configuring DRBD with PCS for high availability. Regular monitoring using pcs status, drbd-overview, and network checks (ping, telnet) is crucial to ensure smooth operation. For production setups, enable STONITH (Shoot The Other Node In The Head) to prevent split-brain scenarios.




======================================================================================
Thank you, check out more blogs for such information..!
For any queries,feel free to reach out me on shubhammore07007@gmail.com
